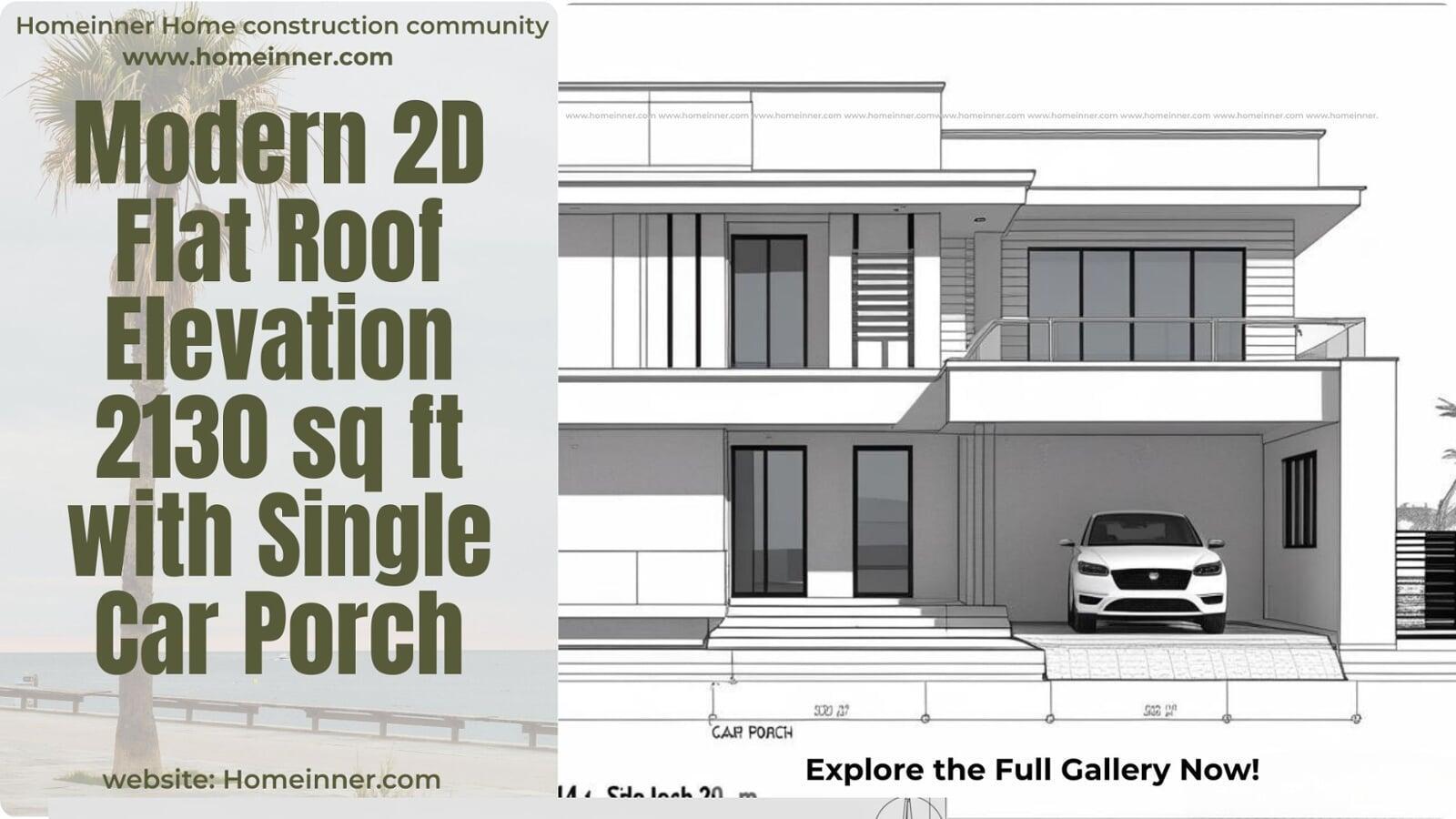

A striking 213 sq. m. modern flat roof home elevation with a single car porch, expansive balconies, and a balanced two-storey design—crafted for contemporary family living.
With three decades in architectural design and critique, I’ve witnessed the evolution of residential facades from ornate to elegantly minimal. This 2D elevation CAD drawing is a testament to the power of modern simplicity—offering a 213 sq. m. (approx. 2,293 sq. ft.) home that balances function, form, and curb appeal. Let’s explore why this design stands out for today’s discerning homeowner.
Key Highlights
Plot Size: 14 m x 20 m (approx. 46 ft x 66 ft)
Style: Modern flat roof elevation
Total Area: 213 sq. m. (2,293 sq. ft.)
Floors: Ground + First floor
Special Feature: Single car porch
Architectural Analysis & Special Features
Balanced Modern Facade:
The elevation’s symmetry is immediately striking. Clean horizontal lines, generous balconies, and a flat roof create a sense of calm and order—hallmarks of contemporary architecture.
Single Car Porch Integration:
The car porch is seamlessly tucked under the upper balcony, maximizing plot utility while maintaining a cohesive look. This design not only shelters the vehicle but also enhances the home’s geometric rhythm.
Expansive Balconies & Fenestration:
Both floors feature wide balconies with minimalist railings, perfect for outdoor relaxation. Large sliding windows and doors ensure abundant daylight, blurring the boundary between indoors and out
Grand Entrance & Approach:
The central staircase and split-level entry create a welcoming, ceremonial approach. The elevation’s steps and platforms add depth and visual interest, guiding visitors naturally to the main door.
Material Palette & Detailing:
While the drawing is monochrome, the articulation suggests a mix of textures—perhaps smooth plaster, subtle grooves, and glass balustrades. The interplay of solid and void, light and shadow, is expertly handled.
Floor Details
Ground Floor: Features a generous sit-out, a single car porch to the right, and a centrally located main entrance. The layout promises a bright, open-plan living space with direct access to the outdoors.
First Floor: Offers multiple bedrooms, a family lounge, and two large balconies—ideal for family gatherings or quiet evenings.
Estimated Cost
Total Area: 213 sq. m. (2,293 sq. ft.)
Estimated Cost: ₹42–52 lakhs (approx., subject to material selection and local rates)
Project Overview
Style: Modern flat roof elevation
Floors: Ground + First floor
Plot Size: 14 m x 20 m
Special Feature: Single car porch, expansive balconies
Join the discussion
Have a question or an idea? Share it in the comments section at the bottom of the page! Join the discussion, connect with others, and exchange insights. Your thoughts could spark great conversations and help the community grow. Be part of the conversation and make an impact!
Search Homeinner
This 2D elevation is a masterclass in modern residential design—balancing symmetry, openness, and practical features. The single car porch, wide balconies, and clean lines make it ideal for families who value both aesthetics and everyday comfort. After 30 years in the field, I can confidently say this home will stand the test of time, both in style and livability.
